Flanges Ti Gr2 UNSR50400 3" 6" SCH10S 150LBS WN flanges ASTM B381 ASME B16.5
1. titanium flange
Product name: titanium flange
Grades: TA0, TA1, TA2, TA3, TA4, TA5, TA6, TA7, TA9, TA10, TC4; Gr1, Gr2, Gr5
Specification (Size): DN10----DN1000
Delivery status: annealed (M) hot processed (R) cold processed (Y) (annealed, ultrasonic flaw detection)
Features: acid and alkali corrosion resistance, high strength, high temperature resistance
Application areas: petroleum, chemical, power
2. titanium flanges picture
| Product name | Titanium Flange |
| Material grade | Gr1,Gr2,Gr5,Gr7,Gr12 |
| Certificate | ISO9001:2008 |
| Standard | ANSI B16.5/ASTM B16.5 |
| Size | NPS 1/2"~ 24" |
| Pressure | Class150-class 2500 |
| Technique | Forged and CNC Machined |
| Type | WNRF , SORF , BLIND ,SW, PL |
| Flange surface | FF,RF,TG,RJ etc |
| Application | Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery |
| Advantage | 1. Long service life |
| 2. Corrosion -resistant |
| 3. Hign yeiled strenth and tensile strength. |
Titanium flange sealing face
raised surface (RF), Male and Female (MF), Tenon groove surface (TG), metal ring connection surface ,total four kinds.
titanium flanges function
The flange, gasket and bolt are connected to each other as a detachable connection of a group of combined sealing structures.
Flange connection is an important connection method for pipeline construction.
The flange connection is easy to use and can withstand large pressures.
Different grade titanium
| grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) |
| component | ksi | MPa | ksi | MPa |
| Gr1 | Ta1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | Ta2 | 50 | 345 | 40 | 275 | 20 |
| Gr5 | Ti6Al4V | 130 | 895 | 120 | 828 | 10 |
| Gr7 | Ti-0.2Pd | 50 | 345 | 40 | 275 | 20 |
| Gr9 | Ti-3Al-2.5V | 90 | 620 | 70 | 483 | 15 |
| Gr12 | Ti-0.3Mo-0.8Ni | 70 | 483 | 50 | 345 | 18
|
三 Inspection (BV ,SGS ,TUV .so on)
All Test Items
Visual testing (VT)
Ultrasonic Testing (UT)
Radiographic Testing (RT)
Magnetic particle testing (MT)
Penetrant Testing/Dye penetrate (PT)
Eddy Current testing (ET)
Acoustic Emission(AE)
Product Tags:
|
|

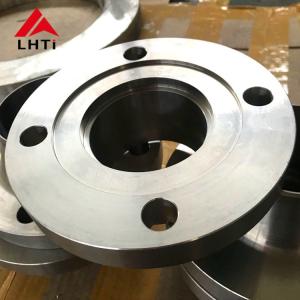

UNSR50400 3" 6" SCH10S 150LBS Weld Neck Flange Images
|
