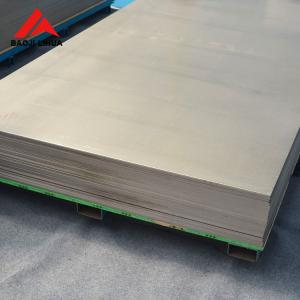

ASTM B265 Gr2 1mm titanium sheet price per kg
| Product mame | Titanium sheet |
| Material | Titanium |
| Grade | gr2 |
| Standard | ASTM B265, ASME SB265 |
| Thickness | 1.0mm |
| Process | cold rolled |
| Status | M, annealed |
| Surface | pickling, polished |
| Third-party testing | SGS, TUV, BV etc. |
| application | chemicals, machinery and equipment, electroplating equipment, environmental protection equipment, electronics, watches and clocks, glasses, jewelry, sporting goods, golf and precision processing industries |
Quality supervision: starting from the sponge titanium composition inspection, the upper, middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic non-destructive inspection is performed to ensure the quality of the ingot. Physical performance test to ensure product performance.
Specification
| Specification of Titanium foil/Titanium sheet/Titanium plate |
| | Thickness(mm) | Width(mm) | Length(mm) |
| Titanium foil | 0.03-0.5 | 30-150 | 30-200 |
| Titanium sheet | 0.5-5 | 30-1000 | 30-2000 |
| Titanium plate | 5-60 | 200-2800 | 1000-6000
|
Chemical requirements
| | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal
|
Titanium sheet in stock:
Thickness(0.5mm/0.8mm/1.0mm)*Width≤1000mm*L≤2000mm
Thickness(1.0mm/1.2mm/1.5mm/2.0mm)*Width≤2000mm*L≤6000mm
Thickness(2.0mm/2.5mm/3.0mm)*Width≤2000mm*L≤6000mm
Thickness(3.0mm/3.5mm/4.0mm)*Width≤2000mm*L≤6000mm
Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) |
| ksi | M Pa | ksi | M Pa |
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18
|
Detailed pictures:
Packaging and shipping:
Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance transportation.
Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.
