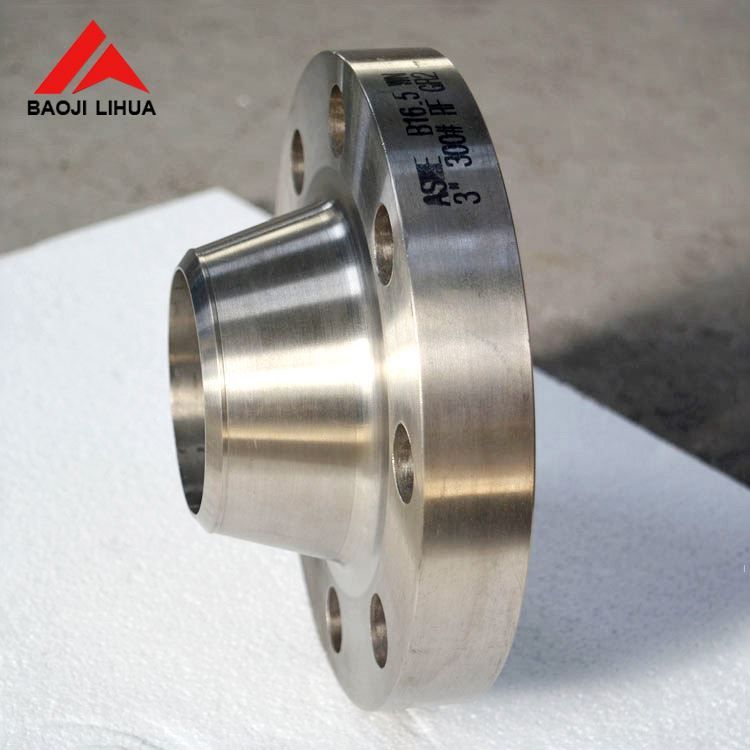

Titanium Weld Neck Flange Class 300 For Chemical Industry

Name: Titanium Weld Neck Flange Class 300 For Chemical Industry
Brand: LHTi
Price: 25 USD

China Titanium Weld Neck Flange Class 300 For Chemical Industry wholesale

MOQ : 1

Price : $25-$85

Brand Name : LHTi

Model Number : WN

Certification : ISO9001

Place of Origin : China

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100000 pcs per month

Delivery Time : 10-15 days

Packaging Details : Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Product Name : Titanium Weld Neck Flange

Standard : ANSI / ASME B16.5

Material : Gr1 Gr2 Gr5 Gr7 Gr12

Application : Chemical industry

Unit Price : $25usd/pc-$85usd/pc

Sealing Surface : RF, FF, TG, RJ etc.

Size : NPS 1/2 - NPS 3

Pressure : Class 300

Surface : Polished

Technique : Forged and CNC Machined

Inspection : UT% PT%

Certificate : ISO9001, TUV etc.

Contact Now

Titanium Weld Neck Flange Class 300 For Chemical Industry

Name	Titanium flange,Titanium alloy flange
Material Grade	Gr1,Gr2,Gr5,Gr7,Gr12
Certificate	EN10204/3.1
Standard	EN1092-1
Size	DN10-3600
Pressure	PN0.6-PN100
Technique	Forged and CNC Machined
Type	WNRF,SORF,BLIND,SW,PL
Flange surface	FF,RF,TG,RJ etc.
Application	Boiler pressure vessels, chemical,petroleum,shipbuilding,pharmaceutical,metallurgy,machinery
Advantage	1,Long servise lif 2,corrosion-resistant 3,High yeiled strength and tensilestrength

Available Flange types

a.Slip On Flange

b.Welding Neck Flange

c.Threaded Flange(Screwed Flange)

d.Plain Flange

e.Blind Flange

f.Lap Joint Flange

g.Wocket Welding Flange

h. welded flange

i. titanium large-diameter flange

Specification

Titanium Weld Neck Flange Class 300
Nom. Pipe Size	Flange Dia.	Flange Thick.	Hub Dia. At Base	Raised Face Dia.	Hub Dia. At Weld Point	No. of Holes	Dia. Of Bolts	Dia. Of Bolt Circle	Bore Dia.	Length Thru Hub
1/2	3-3/4	9/16	1-1/2	1-3/8	0.84	4	2-5/8	1/2	0.62	2-1/16
3/4	4-5/8	5/8	1-7/8	1-11/16	1.05	4	3-1/4	5/8	0.82	2-1/4
1	4-7/8	11/16	2-1/8	2	1.32	4	3-1/2	5/8	1.05	2-7/16
1-1/4	5-1/4	3/4	2-1/2	2-1/2	1.66	4	3-7/8	5/8	1.38	2-9/16
1-1/2	6-1/8	13/16	2-3/4	2-7/8	1.90	4	4-1/2	3/4	1.61	2-11/16
2	6-1/2	7/8	3-5/16	3-5/8	2.38	8	5	5/8	2.07	2-3/4
2-1/2	7-1/2	1	3-15/16	4-1/8	2.88	8	5-7/8	3/4	2.47	3
3	8-1/4	1-1/8	4-5/8	5	3.50	8	6-5/8	3/4	3.07	3-1/8

Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

Detailed Images

Application Industries of Titanium Flange

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

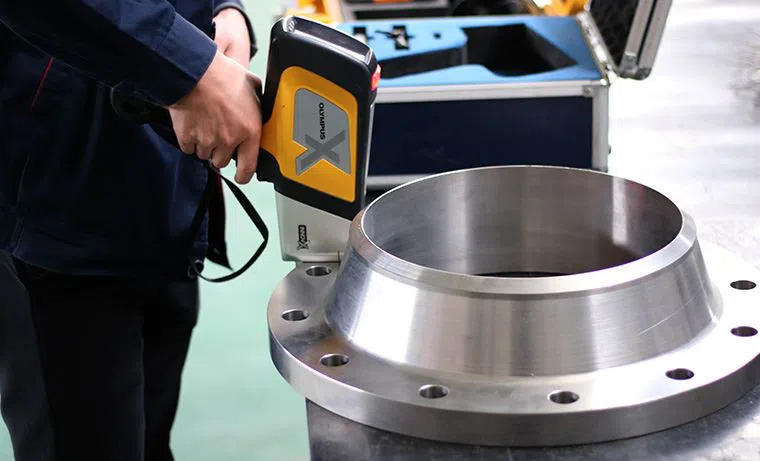

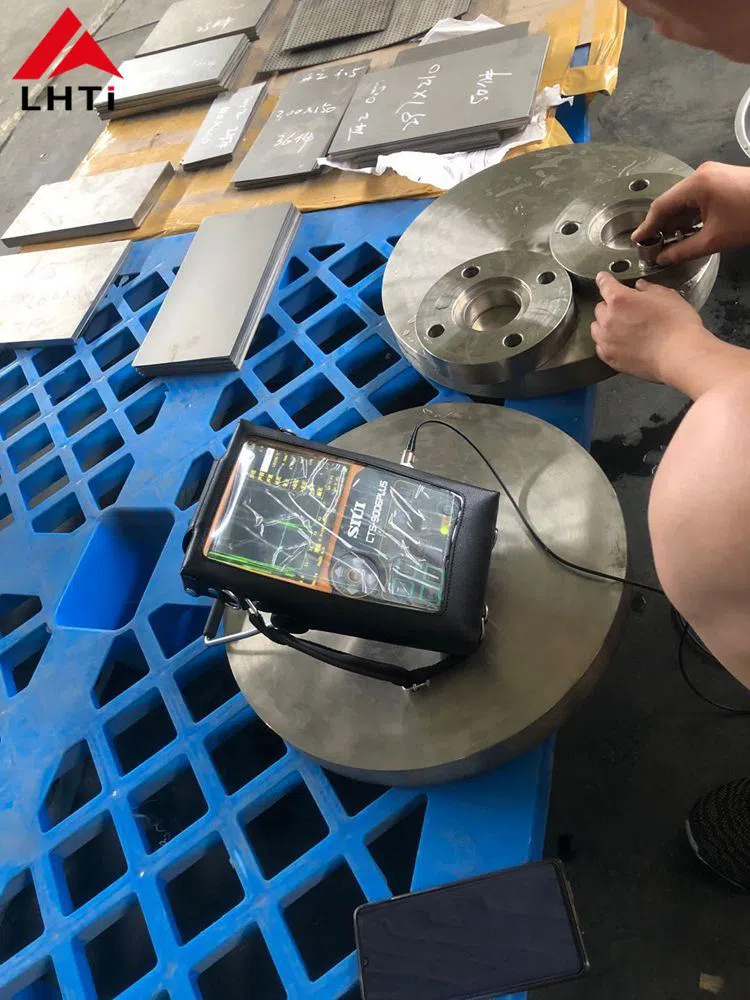

Quality inspections

Titanium Weld Neck Flange Class 300 For Chemical Industry

Packaging and shipping

Each flange is wrapped with pearl cotton to prevent collision and scratch of the flange surface. The gap between the flange and the flange is filled with sponge to ensure that the flange is not deformed when the customer receives the goods. Outside is fumigation-free plywood case. Choose the best express, air or sea based on the weight of the goods. Everything is to better serve customers as the goal.Customer also can arrange shipment theirselves.

Titanium Weld Neck Flange Class 300 For Chemical Industry
